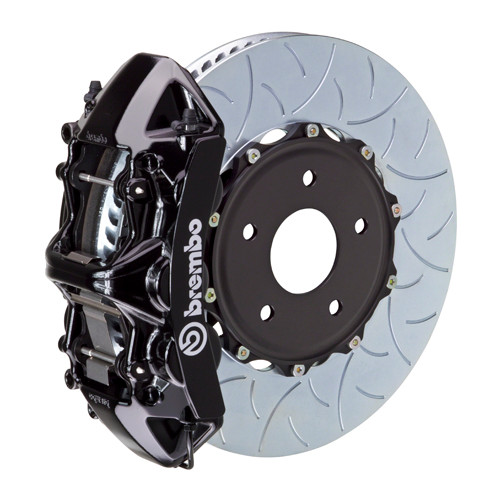

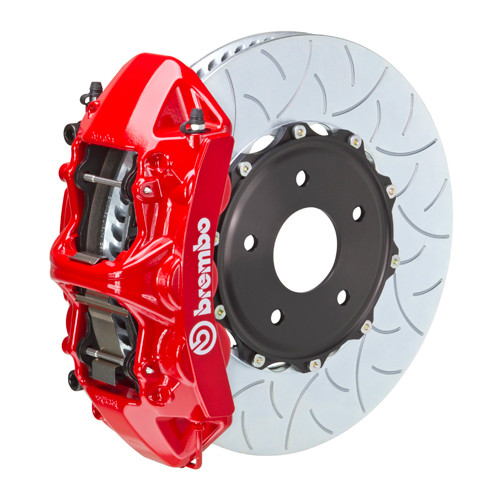

Brembo Braking System

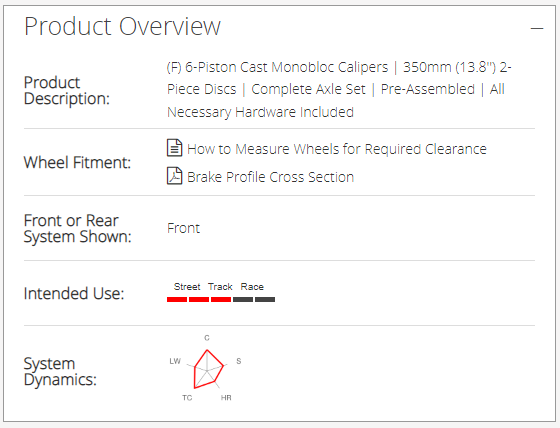

Product Description:

(F) 6-Piston Cast Monobloc Calipers | 350mm (13.8'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Wheel Fitment:

How to Measure Wheels for Required Clearance

Brake Profile Cross Section

Front or Rear System Shown:

Front

Intended Use:

Street | Track

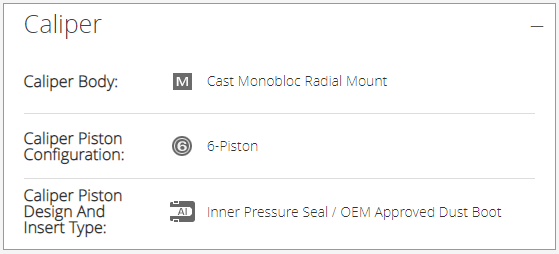

Caliper Body:

Cast Monobloc Radial Mount

Caliper Piston Configuration:

6-Piston

Caliper Piston Design And Insert Type:

Inner Pressure Seal / OEM Approved Dust Boot

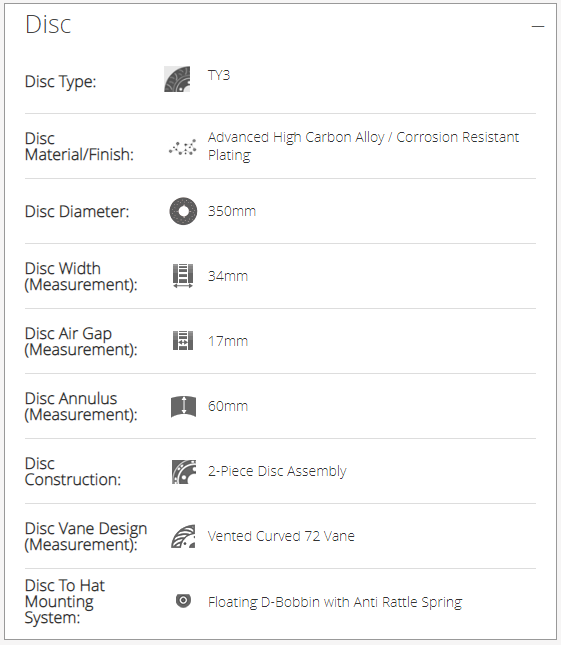

Disc Type:

TY3

Disc Material/Finish:

Advanced High Carbon Alloy / Corrosion Resistant Plating

Disc Diameter:

350mm

Disc Width (Measurement):

34mm

Disc Air Gap (Measurement):

17mm

Disc Annulus (Measurement):

60mm

Disc Construction:

2-Piece Disc Assembly

Disc Vane Design (Measurement):

Vented Curved 72 Vane

Disc To Hat Mounting System:

Floating D-Bobbin with Anti Rattle Spring

Pad Compound:

Brembo High Performance FM1000

Pad Volume / Surface Area:

107.3 | 95.4

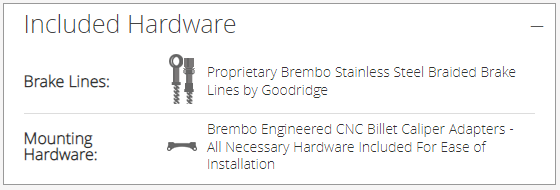

Brake Lines:

Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge

Mounting Hardware:

Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
